 CARTRIDGE FILTERS RANGE FROM 40/m2 TO 900/m2

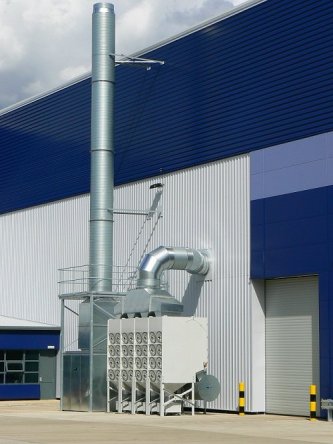

 PHOTO BELOW IS A JKF416 CARTRIDGE FILTER £8900.00+VAT


Specification:
1 Type JKF- 416 Dust collect(polyester media of the cartridge filter)
2 Cartridge Number 16 PCS filter area is 9.4m2 / 23.0m2 of each cartridge
3 Application Dust collect(normal temperature)
4 Technical characteristic
(1), Dust out Used automatically pulse & recoil equipment
(2), Airflow 11200m3/h
(3), Resistance Initial filtering resistance-125-250Pa,
Normal filtering resistance-500-750Pa,
Final filtering resistance-1000-1250Pa,
(4),pressure-resistant -5000Pa
(5),Applicable temperature =135°C
(6),Efficiency 99.99%@ 2 µm
(1),Main machine of JKF 416 The shell FT3X-12 Dust collect, Cartridge filter
Air Valve, pressure manometer, controlled by self-clean.
(2), Fan 11200 (M3/HR) at 2500 PA
(3), Electric Control Cabinet One set

PHOTO BELOW IS A JKF28 CARTRIDGE FILTER £4500.00+VAT


Specification:
1 Type JKF- 28 Dust collect(polyester media of the cartridge filter)
2 Cartridge Number 8 PCS of the FT/P3266,filter area is 9.4m2 of each cartridge,
3 Application Dust collect(normal temperature)
4 Technical characteristic
(1), Dust out Used automatically pulse & recoil equipment
(2), Airflow 5400m3/h
(3), Resistance Initial filtering resistance-125-250Pa,
Normal filtering resistance-500-750Pa,
Final filtering resistance-1000-1250Pa,
(4),pressure-resistant -5000Pa
(5),Applicable temperature =135°C
(6),Efficiency 99.99%@ 2 µm
(1),Main machine of JKF 28 The shell FT3X-12 Dust collect, Cartridge filter
Air Valve, pressure manometer, controlled by self-clean.
(2), Fan 5400 (M3/HR) at 2500 PA
(3), Electric Control Cabinet One set

 Model

 Cartridge No

 L x W x H (mm)

  Media Area  Airflow m3/hr  Fan Power Kw
 JKF28  8

1021×2275×4513

  75 - 184  5400  5.5
 JKF312  12

1021×2275×4513

  112 - 276  8400  7.5
 JKF324  24

2042×2275×4513

  224 - 552  1688  18.5
 JKF336  36

3063×2275×3280

  336 - 826  25200  30
 JKF348  48 4084×2275×4513  448 - 1104  33600  55
 JKF360  60 5104×2275×4513   560 - 1380  42000  75
 JKF372  72 6126×2275×4513    672 - 1656  50400  -
 JKF416  16 1021×2275×4996     150 - 368  11200  11
 JKF432  32 2042×2275×4996  232 - 736  22400  -
 JKF448  48 3063×2275×4996   448 - 1104  33600  55
 JKF464  64 4084×2275×4996   464 - 1472  44800  75
 JKF480  80 5105×2275×4996   580 - 1840  56000  -
